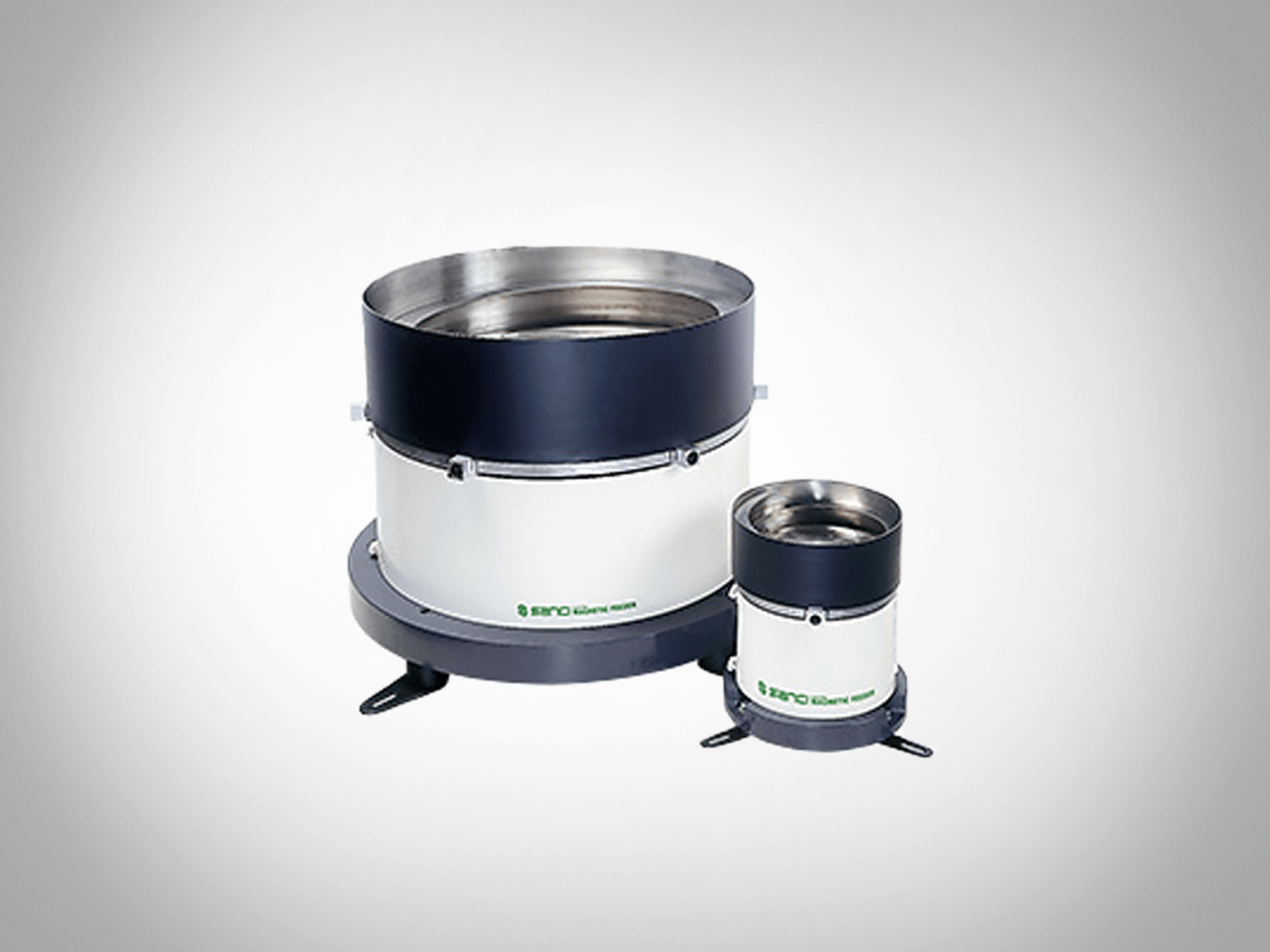

JA-C Series
JA-C Series Product Information
Product Description
The “horizontal pull” method using a side-pull has been adopted, allowing for efficient pulling from the direction of the leaf spring, resulting in a large power generated with a small electromagnet. Additionally, the large JA-C610/C700 features a combination of twin springs and reinforced anti-vibration rubber, greatly improving load characteristics and supporting load increases and decreases. The ideal transport speed is achieved with the double magnet standard equipment.
Features
The features of JA-C Series Part Feeder involves:
- Bowl Camp – Vibration transfer performance to bowl is further improved.
- Leaf Spring – Reduces experienced noise level by nearly 20~ 30% (according to our comparison data), shows superior performance in high-speed transport range.
- Base – Sufficient absorption of reaction force.
- Side-pull Magnet – Side-pull “horizontal” system is also introduced to C-series.

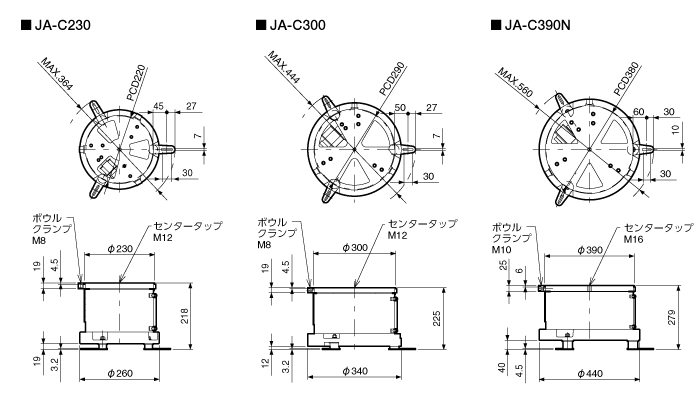

Vibrator External Dimensions

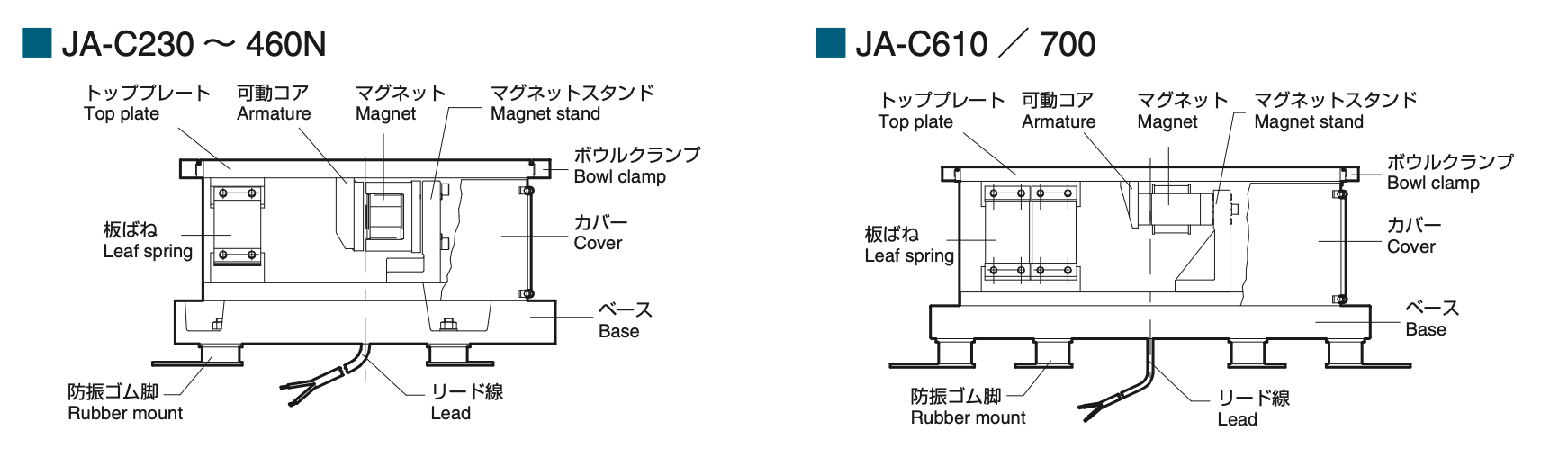

Structure And Names Of Parts

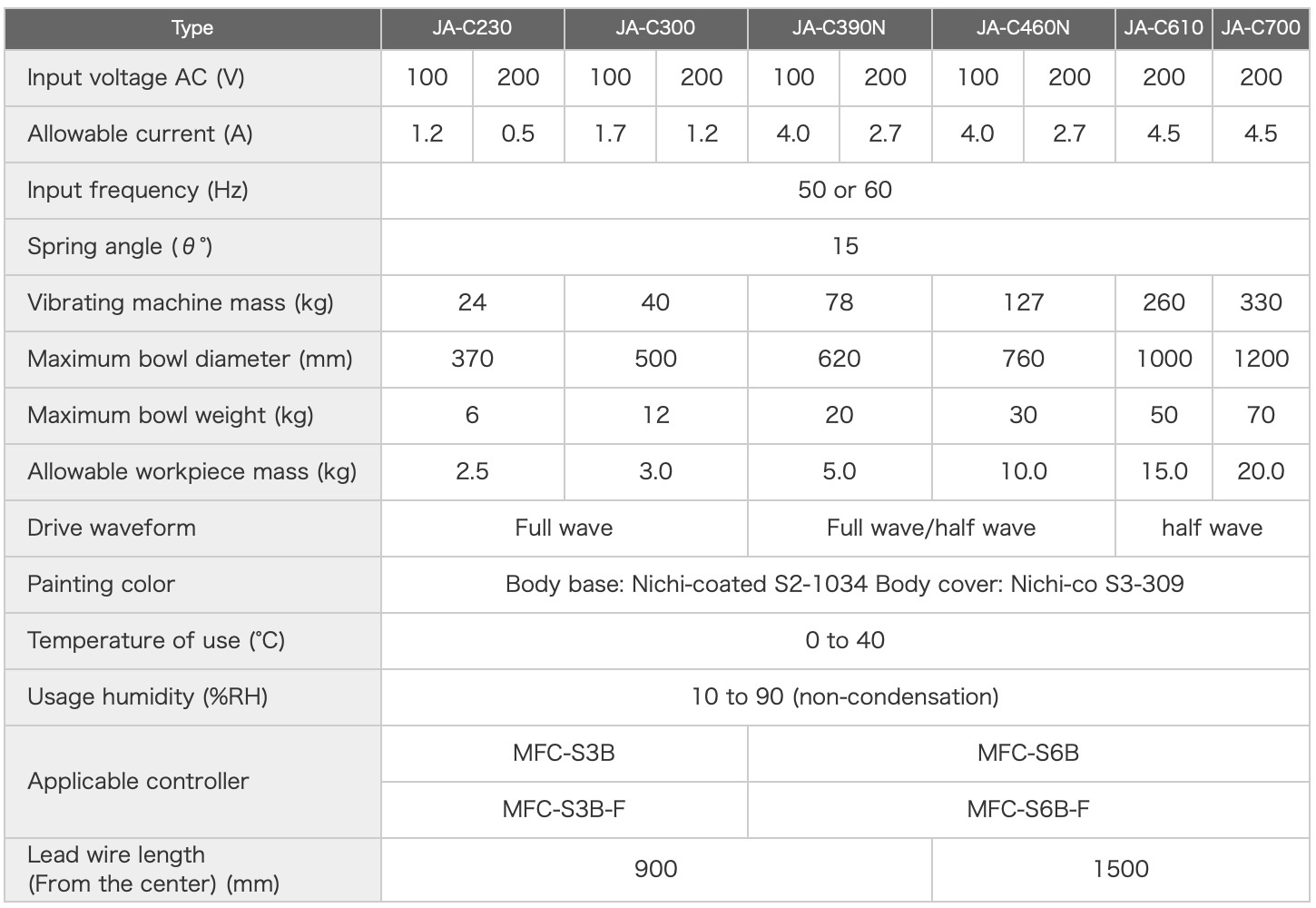

Specification
