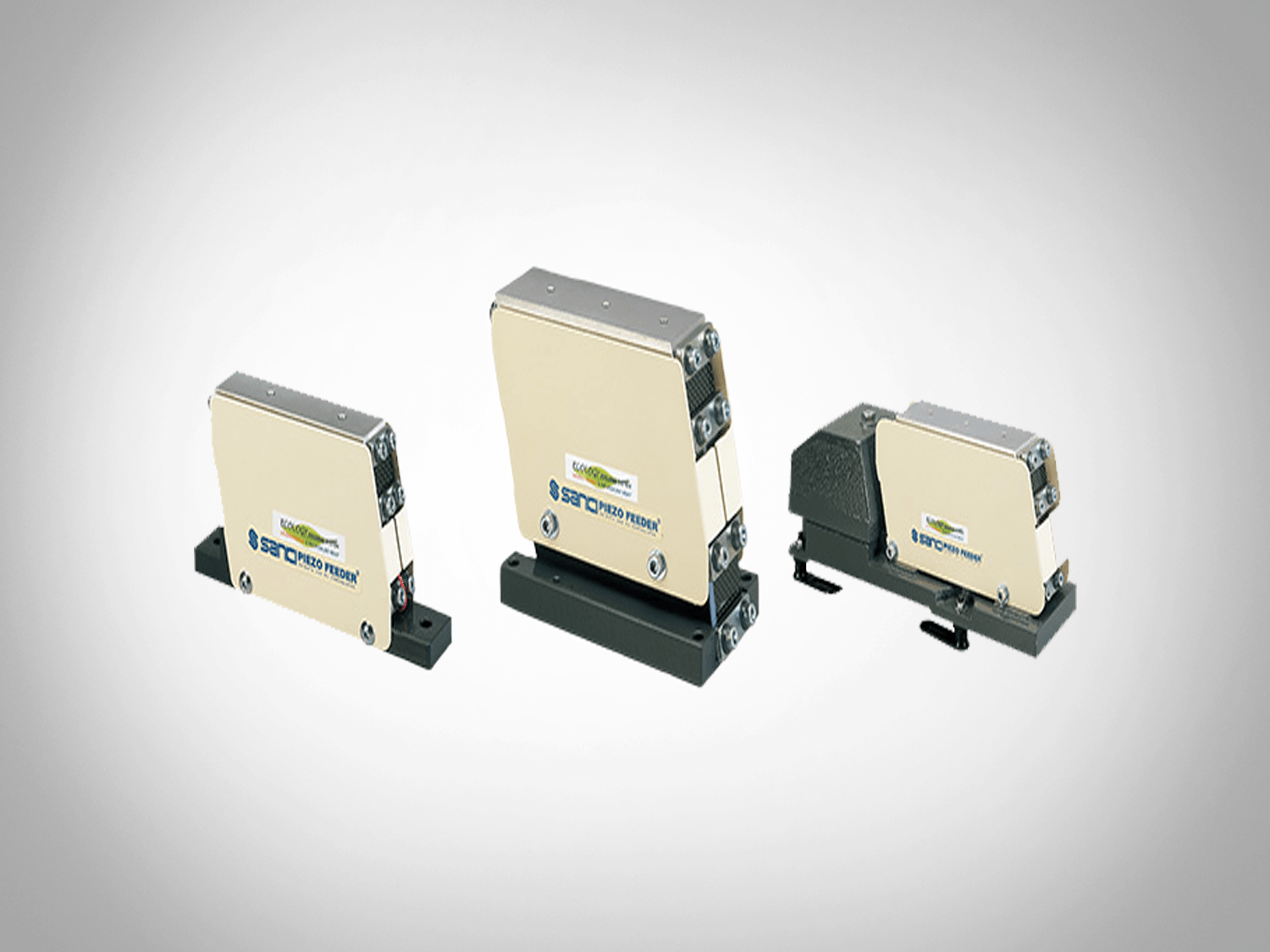

Piezo In-line Feeder Product Information
Product Description
A wide range of in-line feeders is being offered, with the smallest one weighing a total of 0.5 kg and the largest one weighing a total of 17 kg. The maximum permissible chute mass is 5 kg and the maximum chute length is 700 mm. The most recognizable feature is that the need to adjust the leaf spring is eliminated by setting the controller frequency. Depending on the application, any of the following types can be selected: directly mounted, intermediate spring, or rubber-support equipped.
Features
The features of Piezo In-line Feeder Series involves:
- Direct Mount Type – A simple construction. The highest feed rate is attainable. As the reactive force is directly transmitted to the mounting frame, however, this type is limited to compact feeders.
- Leaf Spring Type – The feeder is installed between the drive unit and the mounting frame via leaf spring to reduce the reactive force applied to the frame. Capable of smoothly feeding medium and large-sized workpieces with less vibration.
- Rubber Insulator Type – The feeder is fixed to the frame with rubber supports to significantly reduce the reactive force so that it can even be used on a regular office-type desk. Suitable for high-speed feeding of medium and large sized workpieces.

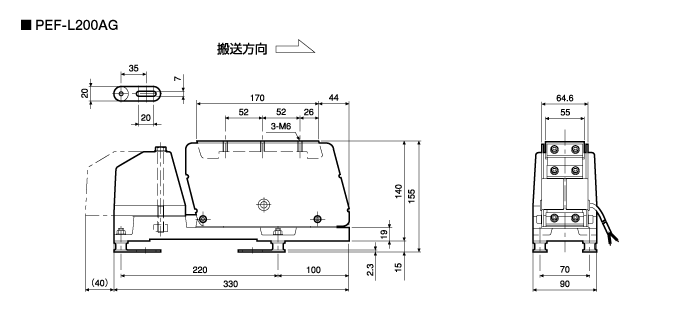

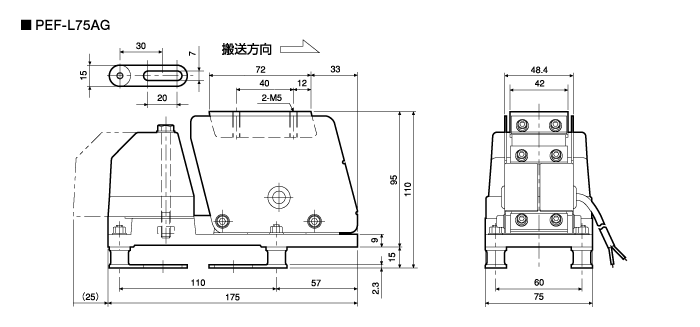

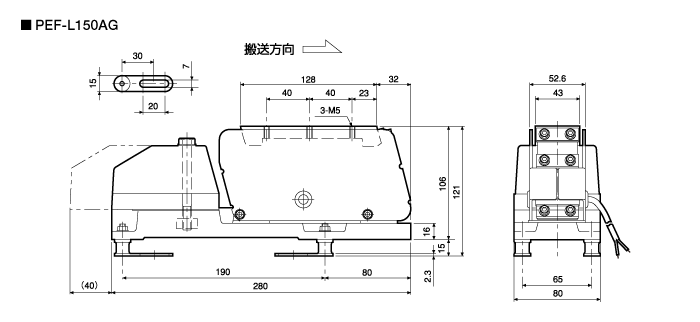

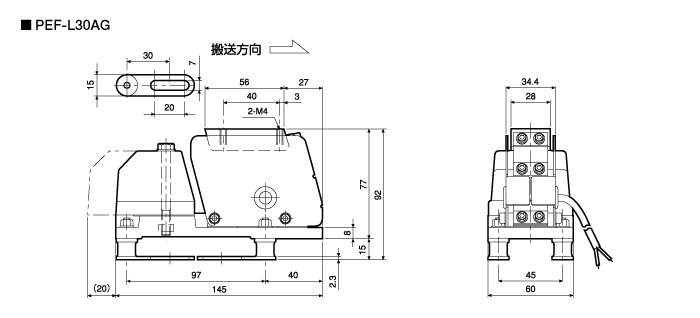

In-line Feeder External Dimensions

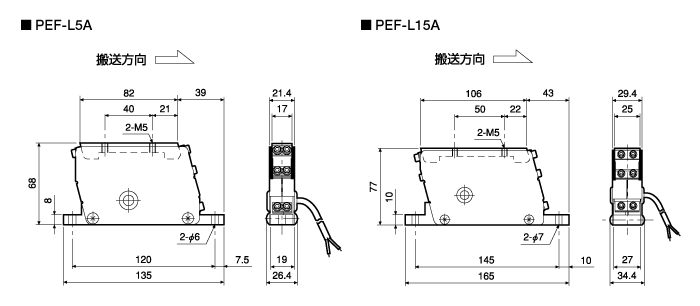

Direct Mount Type

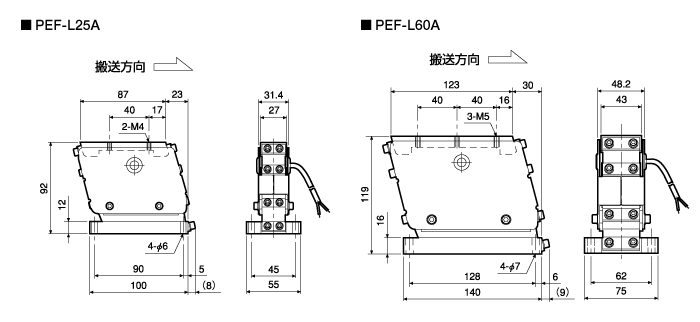

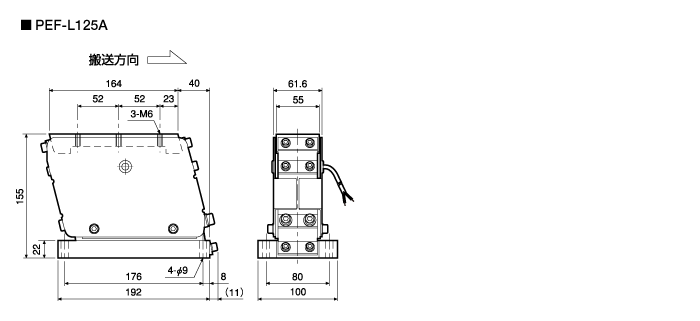

Leaf Spring Type
Direct Mount Type

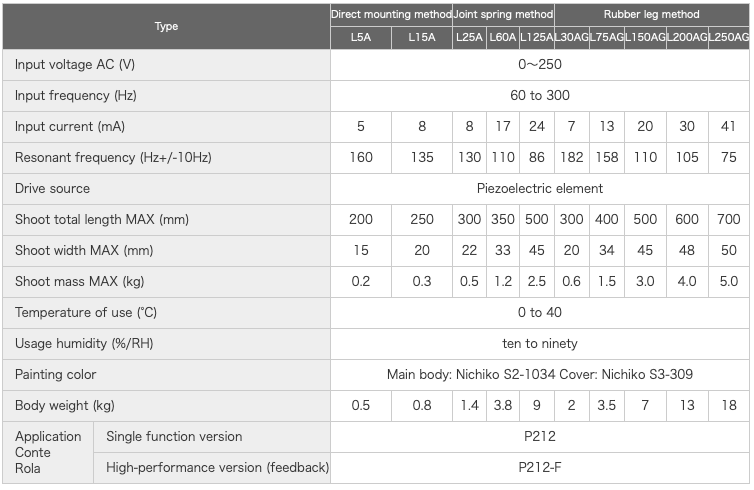

Specification

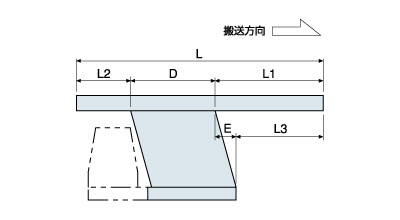

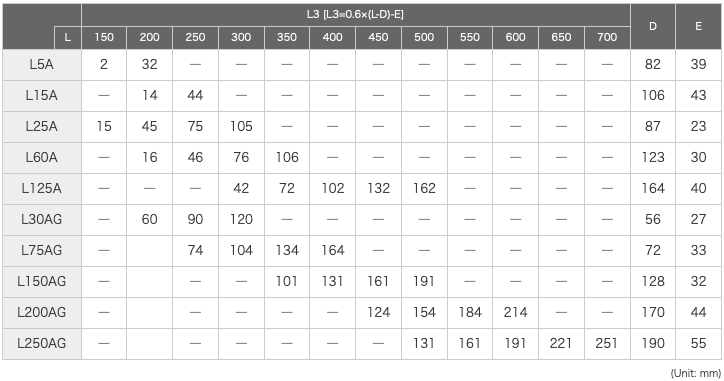

Standard Chute Mounting Dimensions For In-Line Feeder
